QTZ40 series 4t load 30m high TC4808 small topkit tower crane

    Buy cheap QTZ40 series 4t load 30m high TC4808 small topkit tower crane from wholesalers

    Buy cheap QTZ40 series 4t load 30m high TC4808 small topkit tower crane from wholesalers
    • Buy cheap QTZ40 series 4t load 30m high TC4808 small topkit tower crane from wholesalers
    • Buy cheap QTZ40 series 4t load 30m high TC4808 small topkit tower crane from wholesalers

    QTZ40 series 4t load 30m high TC4808 small topkit tower crane

    Ask Lasest Price
    Brand Name : Katop
    Certification : CE, ISO9001
    Model Number : TC4808
    Price : US$23,000.00~25,000.00
    Delivery Time : within 10~15 workdays after receipt the deposit
    Payment Terms : 30%TT in deposit, the balance 70%TT before shipment or by LC at sight
    Supply Ability : 30units/month
    • Product Details
    • Company Profile

    QTZ40 series 4t load 30m high TC4808 small topkit tower crane

    Series: QTZ40 Series;

    Model: TC4808;

    Main Features: Independent height: 30m; Boom length: 48m; Max.load capacity:4.0t; Tip load capacity: 0.8t;

    Certificate: CE, ISO9001:2000;

    ------------------------------------------------------------------------------------------------------------------------------------------------------------

    1. Technical parameters and matched mechanism structures

    Item name

    measurement

    indenpendent

    Adhered

    Fall

    a=2

    a=4

    Rated lifting torque

    KNm

    400



    Max loading capacity

    t



    2

    4

    Working range

    m

    3~48



    Tip load

    t

    0. 8



    Jacking speed

    m/min


    0.4

    Max loading range

    m



    20.97

    10.96

    Lifting speed

    m/min



    72 / 36

    17.5 / 35

    Lifting height

    m

    29


    120

    60

    Swing speed

    m/min



    0.73 / 0.37

    Total power

    KW


    25.82



    Trolley speed

    m/min



    39 / 26

    Balance weight

    f


    8.22



    structure

    t


    21.46(without balance weight)

    Independent height


    2. Lifting Characters

    Range /m

    3---9

    11

    12

    13

    14

    15

    16

    Lifting /t

    4

    3.986

    3.638

    3.343

    3.090

    2.87

    2.68

    Range/m

    17

    18

    19

    20

    21

    22

    23

    Lifting /t

    2.51

    2.36

    2.23

    2.106

    1.996

    1.897

    1.806

    Range /m

    24

    25

    26

    27

    28

    29

    30

    Lifting /t

    1.723

    1.646

    1.576

    1.510

    1.449

    1.393

    1.34

    Range /m

    31

    32

    33

    34

    35

    36

    37

    Lifting/t

    1.29

    1.24

    1.20

    1.159

    1.12

    1.084

    1.05

    Range /m

    38

    39

    40

    41

    42

    43

    44

    Lifting /t

    1.017

    0.986

    0.957

    0.933

    0.911

    0.890

    0.870

    Range /m

    45

    46

    47

    48




    Lifting /t

    0.852

    0.834

    0.817

    0.80

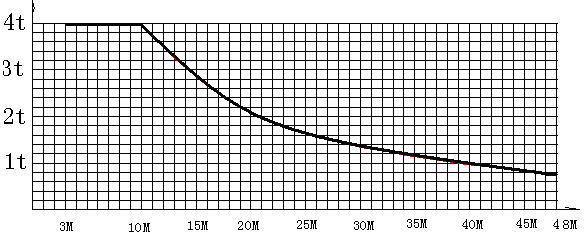

    3. Lifting Characteristic Curve

    Fall=4

    Fall=2

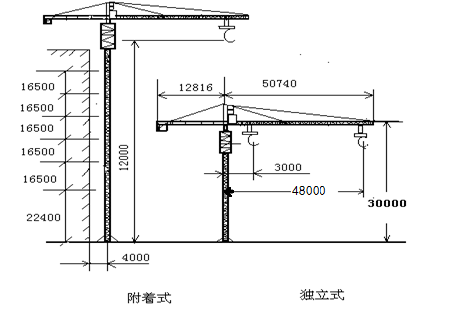

    4. Katop 4808 Tower Crane

    5. Photos of Katop Tower Crane

    6. Spare Parts of Tower Crane
